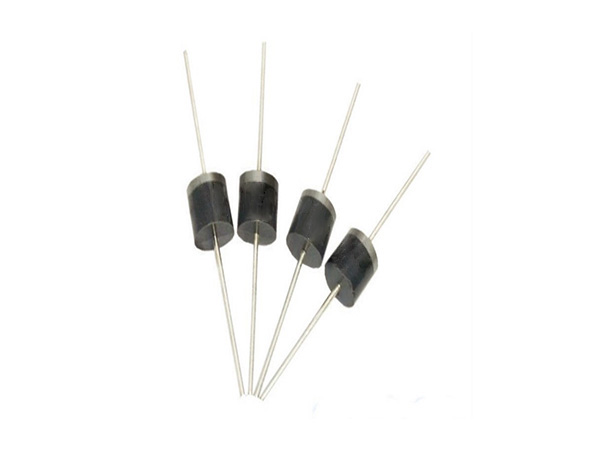

FRD fast recovery diodes play an important role in various electronic circuits due to their performance advantages such as fast recovery time, low forward voltage drop, high reverse voltage withstand, and good temperature characteristics. The following are the main application ranges of FRD fast recovery diodes:

Switching power supply:

FRD fast recovery diodes play an important role in switching power supplies, mainly used for rectification and freewheeling

It can quickly switch from a conductive state to a cutoff state, thereby reducing power consumption and heat generation

Meanwhile, its low forward voltage drop characteristic also helps to reduce the overall losses of the switching power supply

PWM pulse width modulator:

PWM pulse width modulator is a device that controls motor speed or power output by adjusting the pulse width

FRD fast recovery diodes are used in PWM modulators to achieve fast current switching, ensuring that the motor or power supply can operate according to the predetermined pulse width

Inverter:

A frequency converter is an electronic device that converts fixed frequency AC power into variable frequency AC power

FRD fast recovery diodes are used in frequency converters for rectification and inversion processes, ensuring fast switching of current and stable output, thereby improving the efficiency and performance of the frequency converter

High frequency rectification circuit:

In rectifier circuits, FRD fast recovery diodes are used to convert alternating current into direct current

Due to its fast recovery capability, it can reduce energy loss and voltage fluctuations during the rectification process, and improve rectification efficiency

Damping circuit:

In damping circuits, FRD fast recovery diodes are used to limit transient changes in voltage or current

When overvoltage or overcurrent occurs in the circuit, the FRD fast recovery diode can quickly respond and absorb excess energy, thereby protecting other components in the circuit from damage

Inductive load circuit:

In an inductive load circuit, when the switching elements (such as transistors or IGBTs) are turned off, the energy in the inductor is released in reverse

At this point, the FRD fast recovery diode is used as a freewheeling diode, which can quickly conduct and absorb this energy, thereby protecting the switching element from reverse voltage surges

In addition, FRD fast recovery diodes are widely used in other electronic circuits that require fast switching characteristics, such as current critical active filters and current continuous active filters. With the continuous development of electronic technology, the application areas of FRD fast recovery diodes are still expanding, especially in high growth fields such as new energy, industrial automation, and electric vehicles. The special demand for high-power products has driven the customized development and innovation of FRD products

In summary, FRD fast recovery diodes play an important role in various electronic circuits due to their unique performance advantages and are one of the indispensable components in modern electronic technology
